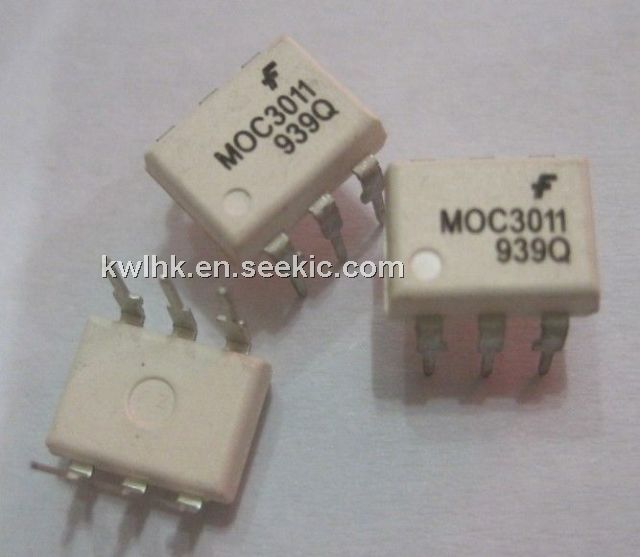

MOC3011

MOC3011, gallium arsenide infrared emitting diode, 100 mW, 1 ms, 60 Hz, DIP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.33~0.43 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
100 ~ 500 :	0.43 / Piece
500 ~ 1000 :	0.38 / Piece
1000 ~ 1500 :	0.33 / Piece

PartNumber:: MOC3011

Brand:: Fairchild Optoelectronics Group - Fairchild | D/C: 93+

Availability:: Supply Ability: 10000/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Mr. harry's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-09-04

From Other Seller

Part Number:MOC3011
US $0.33 - 0.43
Quantity:

piece

Product Summary

The MOC3011 is a gallium arsenide infrared emitting diode. Optically coupled to silicon bilateral switch and are designed for applications requiring isolated triac triggering, low–current isolated ac switching, high electrical isolation (to 7500 Vac peak), high detector standoff voltage, small size, and low cost.

Parametrics

MOC3011 absolute maximum ratings: (1)Reverse Voltage VR: 3 Volts; (2)Forward Current — Continuous IF: 60 mA; (3)Total Power Dissipation @ TA = 25°C Negligible Power in Transistor PD: 100 mW; (4)Off–State Output Terminal Voltage VDRM: 250 Volts; (5)Peak Repetitive Surge Current (PW = 1 ms, 120 pps)ITSM: 1 A; (6)Total Power Dissipation @ TA = 25°C Derate above 25°C PD: : 300mW; (7)Isolation Surge Voltage(1)(Peak ac Voltage, 60 Hz, 1 Second Duration)VISO: 7500 Vac(pk); (8)Total Power Dissipation @ TA = 25°C Derate above 25°C PD: 330 mW; (9)Junction Temperature Range TJ: –40 to +100 °C; (10)Ambient Operating Temperature Range(2)TA: –40 to +85 °C; (11)Storage Temperature Range(2)Tstg: –40 to +150 °C; (12)Soldering Temperature (10 s)TL: 260 °C.

Features

MOC3011 features: (1)Solenoid/Valve Controls; (2)Lamp Ballasts; (3)Interfacing Microprocessors to 115 Vac Peripherals; (4)Motor Controls; (5)Static ac Power Switch; (6)Solid State Relays; (7)Incandescent Lamp Dimmers.
